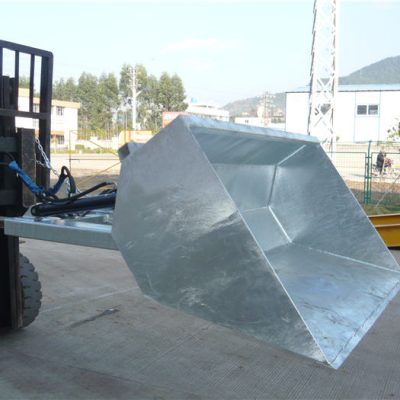

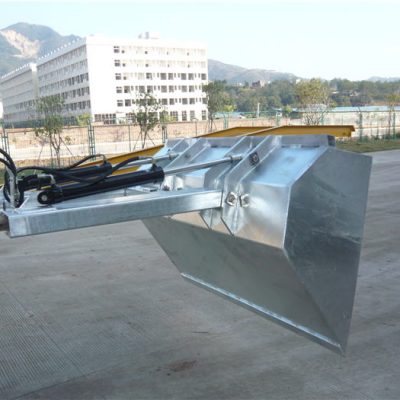

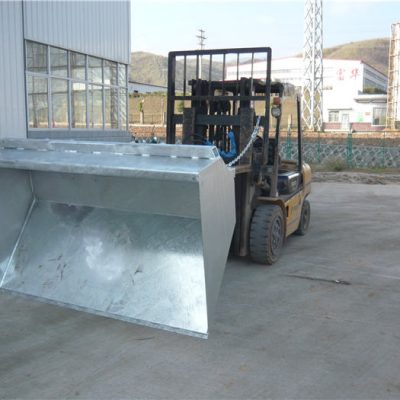

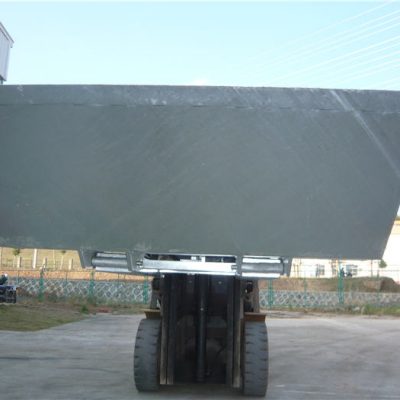

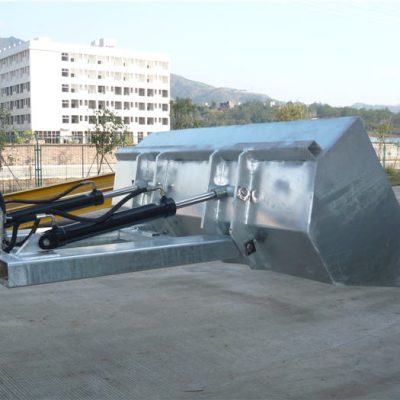

DB-H Forklift Bucket Attachment For Sale

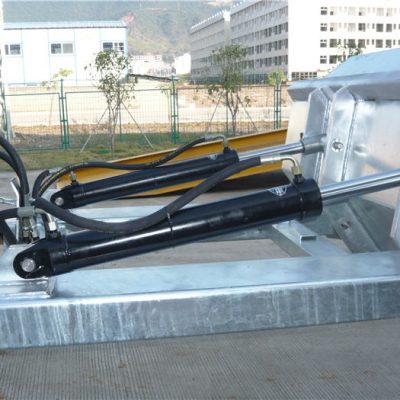

Realizing both forward and backward tipping through hydraulic cylinder,this bucket is suitable for loading or unloading loose materials,such as sand,coal,grains and concrete,ect.
A blade made of wear-resistant material is welded in the front of the bucket.
Surface treatment:painted or galvanized finish.

Specifications


Type

Outer busket dimension(mm)

Max. Fork Size(mm)

Fork Distance (mm)

Unit Weight (kg)

Capacity (kg)

Volume(m3)

Busket Plate Thickness (mm)

DBHS-12

1100*570*1200

180*65

700

306.0

1000

0.50

5

DBHS-14

1100*570*1400

180*65

700

348.0

1000

0.55

6

DBHS-16

1100*570*1600

180*65

700

366.0

1000

0.65

6

DBHS-18

1100*570*1800

180*65

700

384.0

1000

0.75

6

DBHS-20

1100*570*2000

180*65

700

402.0

1000

0.80

6

Quick Details


Place of Origin: Fujian, China (Mainland)
Brand Name: HUAMAI
Model Number: DBHS-12
Product Name: Forklift hydraulic bucket
Outer busket dimension(mm): 1100*570*1200
Max. Fork SizeOuter busket dimension(mm): 180*65mm
Fork Distance (mm): 700mm
Unit Weight (kg): 306kg
Capacity (kg): 1000kg
Volume(m3): 0.50m3
Busket Plate Thickness (mm): 5mm


Forklift Slip-on dirt buckets type DB-M

Dirt Bucket Non Hydraulic DB-M for a cleaner work environment.
Dirt Buckets are especially useful for removing loose material from floors such as gravel, grain or coal.
A hardened steel wear edge ensures long life. Dumped via a simple mechanical lever
Suitable for most Forklifts without adaption
No Tools required for Fitting
Long reach Robust Design
Zinc Plated Finish

Hydraulic Dirt Bucket Forklift Attachment

DB-H slip-on Dirt Buckets allow for quick connection to the lift truck
The hydraulic operation allows for full backwards tilt making this bucket suitable for liquid products
The Unit is fitted with a hardened wear edge
Available in either painted

SPECIFICATIONS:

Volume Capacity: 0.22 cu m
Safe Working Load: 500kg
Bucket Width: 1200mm
Fork Pocket Size: 165 x 65mm
Fork Pocket Centres: 635mm
Unit Weight: 200kg
