Type FE1-16 pallet jack forklift fork extensions for sale

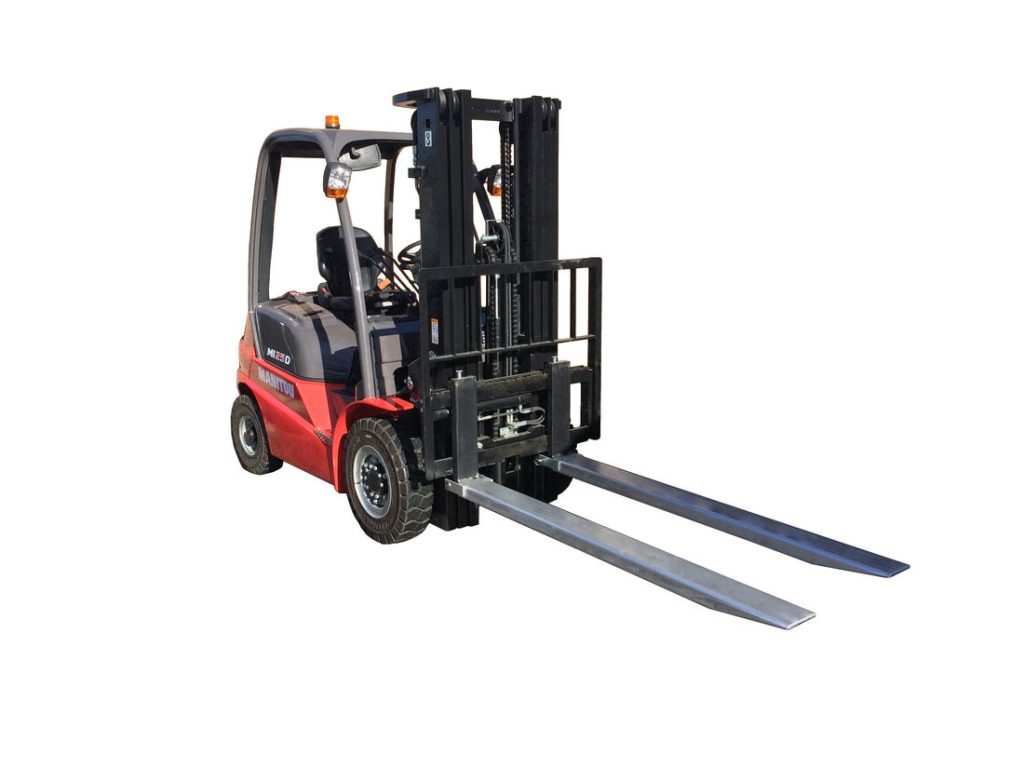

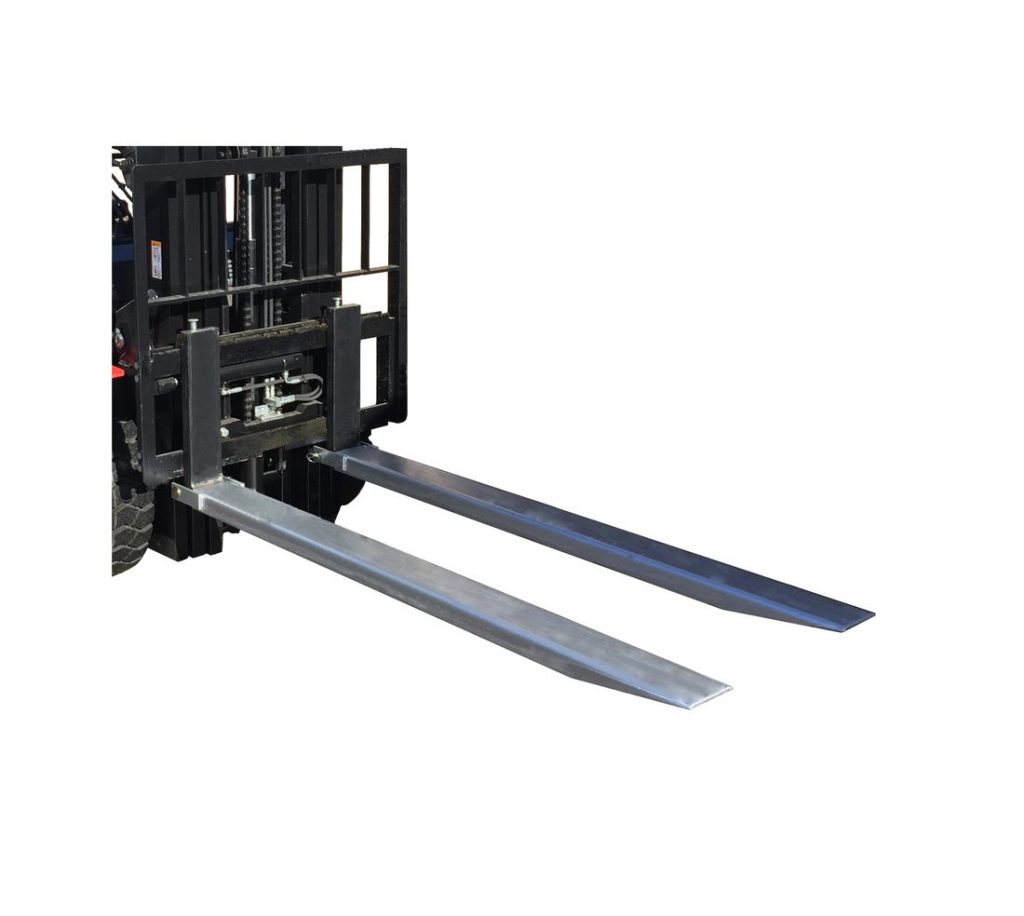

Fork Extensions-FE Type

The Fork Extensions is the best choice to extend the length of fork to a maximum of 1.6 times as long as fork

Other sizes are available according to customer's requirements.

Surface treatment:painted or galvanized finish

Specification


Type

Model

Length

(mm)

Max .Fork

Size(mm)

Unit Weight

(kg/pair)

Capacity

(kg/mmLC)

















Double-sided

FE1-16

1600

100*45

50

3000/600

FE1-18

1800

56

FE1-21

2100

66

FE1-24

2400

75

FE2-16

1600

130*50

59

4500/600

FE2-18

1800

66

FE2-21

2100

77

FE2-24

2400

88

FE3-16

1600

150*55

91

6500/600

FE3-18

1800

102

FE3-21

2100

119

FE3-24

2400

136

FE3-30

3000

170

FE4-18

1800

165*65

112

8500/600

FE4-21

2100

132

FE4-24

2400

152

FE4-30

3000

186

Note:


Requires contacting the manufacturer of your fork truck for written approval for the use of any fork truck attachment.

Standards require that the length of fork extensions do not exceed the lift truck fork length by

more than 50%. (e.g.,Fork extension used on 48" long lift truck forks should not exceed 72".)

The use of extensions effect lift truck capacity. Contact lift truck manufacturer for load capacity

reductions.


Introduction

HUAMAI fork extensions is the best choice to extend the length of fork to the max of 1.6 times length fork. Other sizes are available according to customers requirements. And surface treatment are optional between painted and galvanized.

Features:

• Made from high tensile grade steel
• Zinc plated for corrosion protection (Type SL Painted)
• High Safe Working Load (SWL) rating
• Supplied with toggle locking pins
• Fitted with rating plate
• Supplied with instructions

• Custom Dimension Available

Specification

Forkl Extension Slipper TypeLength (mm)Max.Fork Size (mm)Unit Weight (Kg/pair)Capacity (Kg)/Load Center (mm)
FE1-161600100 X 4550.03000/600
FE1-18180056.0
FE1-21210066.0
FE1-24240075.0
FE2-161600130 X 5059.04500/600
FE2-18180066.0
FE2-21210077.0
FE2-24240088.0
FE3-161600150 X 5591.06500/600
FE3-181800102.0
FE3-212100119.0
FE3-242400136.0
FE3-303000170.0
FE4-181800165 X 65112.08500/600
FE4-212100132.0
FE4-24
