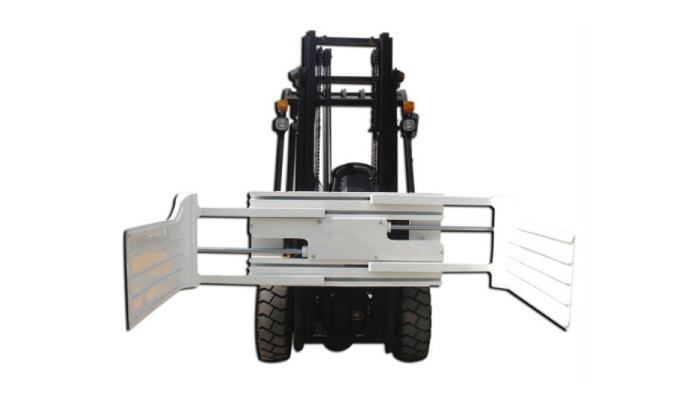

Big opening range lift truck attachment bale clamp equipment with forklift

Features

*Proven durable T-beam arm aluminum frame construction.

*Superior arm-side bearing for extended service life.

*Ribs provide secure grip and giver driver good tip handling and bale spinning capabilities.

*Regenerative hydraulic value for optimal am speed.

*High-strength all-steel structure design, always of high efficiency under continuous operation, good effect.
*E-slot in the overall framework to improve the stability of product, to extend the longevity of product.

*Reasonable design, nice outlook, using the world's most high-quality hydraulic components.

Specification

Capacity/ Load Center (kg@mm)		Mounting Class	Opening Range (mm)	Arm Height A (mm)	Arm Length B (mm)	Frame Width C (mm)	Arm Thickness D (mm)	Overall Height H (mm)	Vertical Center of Gravity CGV (mm)	Weight (kg)	Effe ctive Thic kness ET (mm)	Horizontal Center of Gravity HCG (mm)
1700@500		II	455-1735	420	685	1040	82	665	220	310	127	203
1700@500		II	455-1735	420	785	1040	82	665	220	337	127	239
1700@500		II	450-1735	420	915	1040	82	665	220	378	127	307
1700@500		II	450-1735	420	991	1040	82	665	220	382	127	315
1700@500		II	450-1735	420	1194	1040	82	665	220	425	127	401
2500@500		II	550-1900	480	991	1015	98	730	255	516	142	315
2500@500		III	550-1900	480	991	1015	98	730	255	519	150	312
2500@500		II	545-1890	480	1194	1015	98	730	255	574	142	396
2500@500		III	545-1890	480	1194	1015	98	730	255	590	150	391
2500@500		II	550-1900	480	915	1015	98	730	255	498	142	307
2500@500		III	550-1900	480	915	1015	98	730	255	501	150	305
2200@500		III	490-2300	480	990	1600	98	730	255	660	150	240
2200@500		III	490-2300	480	1195	1600	98	730	255	680	150	240

Note:

1.Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.

2.Two sets additional oil circuit required on forklift

3.Open arm range is the space between two arms tip.

4.Arm thickness"D" is the actural requested operation space.

5.Please contact the sales from HUAMAI

Hydraulic Flow & Pressure

Model	Min.Hydraulic Flow(L/min)	Rec. Hydraulic Flow(L/min)	Max.Hydraulic Flow(L/min)	Rec. Hydraulic Pressure(Bar)	Max. Hydraulic Pressure(Bar)
BCS20D	15	25	25	35	160
BCS30D	15	40	40	35	160

Options

Zigzag bar splint

Left and right clip arm independent movement type

180 degree rotation stopping mechanism

Application

Economic Bale Clamps efficiently and economically handle nearly any type of baled products including cotton, wool, synthetic, textile bales, corrugated , newsprint ,rag, hay, metal, and other scrap bales. High efficiency and economy to handle in without platform condition.

---
