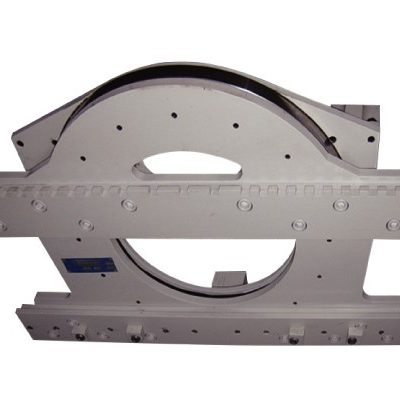

Heavy Duty Forklift Rotator Attachment For Sale

Features


Hydraulic system: hydraulic motor and foreign companies jointly developed by a new generation of products; rotating hinge and seal oil are imported products. Rotating two-way hydraulic oil circuit, self-locking, ensuring safety at work.

Structural parts: the slewing bearing slewing bearings with large modulus, the load capacity; worm and worm involute tooth profile, can improve efficiency, reduce heat loss, but also to achieve self-locking feature.

Mechanical performance: the case can be achieved with a 360 ° two-way rotation, a group of asphalt can be added to meet the requirements; standard fork can be used directly without modification.

Advantages


1. Proven durable construction design, unique rotating driven system, meet the high strength continuous operation.

2.Strong rotating driving torque achieved the stable and reliable rotating function.

3.Hydraulic motor fixed with reversible hydraulic lock, any angle position of lock function.

Videos


Specification


Catalogue Order No.Capacity @ Load CenterTruck/Rotator Mounting ClassRotator/Forks
Mounting Class
Carriage Width
(mm)
Fork Max Spacing
(mm)
Fork Min Spacing
(mm)
Overall Width
(mm)
Weight

(kg)

RRB20D-001A[email protected]IIII815705610840188
RRB20D-002A[email protected]IIII815705610840254
RRB20D-003A[email protected]IIII815705610840259
RRB20D-004A[email protected]IIII815705610840268
RRB20D-005A[email protected]IIII815705610840277
RRB20D-006A[email protected]IIII815705813840300
RRB20D-007A[email protected]IIII940835813965309
RRB30D-008A[email protected]IIII940855813965313
RRB30D-008B[email protected]IIIII940855813965329
RRB30D-009A[email protected]IIII114510608131170327
RRB30D-009B[email protected]IIIII114510608131170343
RRB35D-010B[email protected]IIIIII10659908131090390
RRB35D-011B[email protected]IIIIII122011408131245406

Note


Obtain the actual capacity of the forklift and attachments from the forklift manufacturer,

One sets additional oil circuit required on forklift

According to user needs to increase forks. Please note the fork's capacity.

The actual mount ,please according to the fork width adjustment positioning block, choose one mating surface, preventing load rotates, fork on the upper and lower cross beam under moving.

Please contact the sales from HUAMAI

Hydraulic Flow & Pressure


ModelMin.Hydraulic Flow(L/min)Rec. Hydraulic Flow(L/min)Max.Hydraulic Flow(L/min)Rec. Hydraulic Pressure(Bar)Max. Hydraulic Pressure(Bar)

RRB20D

20

40

60

35

160

RRB30D

20

40

60

35

160

RRB35D

20

40

60

35

160

RRB35D

20

40

60

35

160

Rotator Specification

ModelRotator SpeedRotator Torque

RRB20D

7.0r/[email protected]/min[email protected]60Bar

RRB30D

5.2r/[email protected]/min[email protected]

RRB35D

5.2r/[email protected]/min[email protected]

RRB35D

5.2r/[email protected]/min[email protected]

Options


Forks
180 degrees rotator
Welding type of hook

Application


Rotator widely used in food, automation, chemical, materials recycling, smelting foundry industries, as well as any need to rotate the hopper or box tipping and mixing occasions, the goods can quickly flip or conversion, and then immediately coherent the fork back to its original location.

Quick Details


Place of Origin: Fujian, China (Mainland)
Brand Name: HUAMAI
Model Number: RRB20D-001A
Product Name: Rotating forklift attachment
Type: RRB20D-001A
Truck/Rotator Mounting Class: II
Carriage Width (mm): 815mm
Fork Max Spacing (mm): 705mm
Fork Min Spacing (mm): 610mm
Overall Height (mm): 840mm
Weight (kg): 188mm
Usage: Food, automation, chemical, materials recycling
