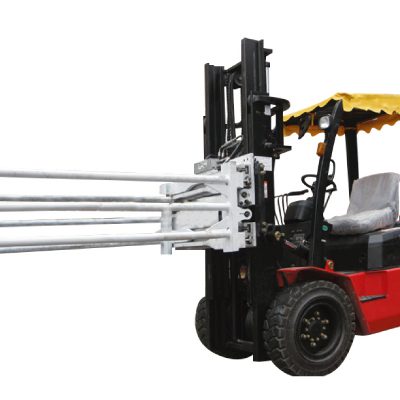

Forklift Chemical Fiber Waste Paper Hinged Broke Handler


High strength steel structure design ,meet user efficient continuous operation.

The one-way valve clamp of arm oil cylinder has the function to guarantee the pressure ,to ensure the safe and reliable in the process of use.




Obtain the actual capacity of the forklift and attachments from the forklift manufacturer,

Two sets additional oil circuit required on forklift

Please contact the sales from  HUAMAI

Hydraulic Flow & Pressure

ModelMin.Hydraulic Flow(L/min)Rec. Hydraulic Flow(L/min)Max.Hydraulic Flow(L/min)Min. Hydraulic Pressure(Bar)Max. Hydraulic Pressure(Bar)








Different fork width and length
Different mounting class


Used for clamping handling all kinds of standard packaging of goods. Such as waste paper,straw ,chemical fiber,etc.Widely used in farming and animal husbandry ,recycling industry ,textile and other industries.

Quick Details

Place of Origin: Fujian, China (Mainland)
Brand Name: HUAMAI
Model Number: HKB30D-007B
Product Name: Hinged Broke Handler
Type: HKB30D-007B
Mounting Class: III
Fork Length A(mm): 1250mm
Arm Height: 1200mm
Arm Length: 1040mm
Tilt Forward/Tilt Backward (mm): 45°/12°
Effective Thickness(mm): 390mm
Horizontal Center of Gravity (mm): 460mm
Raker Width D(mm): 1265mm


1.Handle to deal with waste paper during transportion,ensure the safe and reliable clamping,improve the handling efficiency.

2.Widely used in the bottled cargo stacking operations,such as oil,petrochemical and food industries,etc.

3.Handling loads without standard package, such as broke paper, straw, chemical fiber.


1.Superior arm-side bearing for extended service life

2.Regenerative hydraulic valve for optimal arm speed with less energy consumption

3.Excellent driver visibility and secure operation

4.Rugged all-steel construction, meet the requirements for continuous operation with high efficiency.

5.Vertical & horizontal positions provides clamping and pallet handling functions.

6.Reasonable design with dependable world top quality hydraulic components.
